Self-propelled dosing machine Manufacturers direct four - wheel dosing machine High bar sprayer

FOB Reference Price:Get Latest Price
$4,604.00 - $6,800.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
qk-3WPZ-700A
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Dimension(L*W*H):
5350*1750*2370
Place of Origin:
china
Brand Name:
qk
Application:
Pesticide spraying
Features:
four-wheel
After-sales Service Provided:
No overseas service provided
Voltage:
220v
Certification:
CE
Product Name:
Water-and-drought dual-purpose spray rod dosing machine
COLOR:
Optilnal
The nozzle type:
Huai-shaped nozzle, side nozzle
Number of conical nozzles:
24
Side of the nozzle:
2
Effective amplitude (m):
15
Height of nozzle off the ground (mm):
500~1600
The battery:
80B24R
Operation mode:
Full hydraulic power steering
brand:
qk
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wood cased
Port
qingdao port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

      Self-propelled dosing machine Manufacturers direct four - wheel dosing machine High bar sprayer

It is an ideal field management machine with wide width, large capacity and high efficiency.This product has compact structure, beautiful appearance, sectional-designed spray rod, automatic expansion and contraction, easy to operate, anti-drip nozzle, anti-collision spray rod and dual-purpose tires.

The spraying machine is suitable for machine seeding, machine planting water, dry field crop diseases and insect pests, professional machine control to control even treatment operations.The spraying machine makes up for the deficiency of the previous manual pressure spraying machine, the use of spraying machine saves labor and time, improves the efficiency of the operation, and the machine USES multi-cylinder diaphragm pump, large displacement, reliable work.

Fertilizer distributor, tires, cab for optional, fertilizer distributor height of 12 meters or so (depending on the size of fertilizer particles), tires can be selected for paddy wheel or dry field wheel.

Specification



The body size is as follows:

name

The fuselage size(mm)

The wheelbase(mm)

Wheel base(mm)

Effective ground level(mm)

Minimum ground level(mm)

Weight(kg)

parameter

5350*1750*2370

2120

1500

1050

870

1200

The engine parameters are as follows

name

Engine type

The total emissions(L)

Rated power(KW(ps)RPM)

Tank capacity(L)

Start the way

parameter

Vertical, four cylinder, water cooled, four stroke, natural inspiration

2.24

3.8/2400

25

Battery automation

The parameters of the running part are as follows

The ministry of walking

typeOperation

Aws (four-wheel drive, four-wheel steering)

Operation mode

Full hydraulic power steering

gearboxWalking

Infinitely variable speed

speed (km/h)

Mobile walk: 0-14 spread: 0~7

Brake (both for parking

Pedal mechanism

tire

110/100/90 4pr(Air pressure240kpa)

The battery

80B24R

Technical parameters of spray pump

The spray pump

 medicine cabinet capacity

700

 Mixing way

Jet stirring

 name

The gear pump

 the speed (RPM)

600

The water absorbing capacity (L/min)

35-60

maximum pressure (MPa)

1.2



spray pressure (MPa)

0.5~0.8

Parameters of prevention device department

Type of boom device

Double arms, electric open and close, electric up and down

The nozzle type

Huai-shaped nozzle, side nozzle

Number of conical nozzles

24

Side of the nozzle

2

Effective amplitude (m)

15

Height of nozzle off the ground (mm)

500~1600

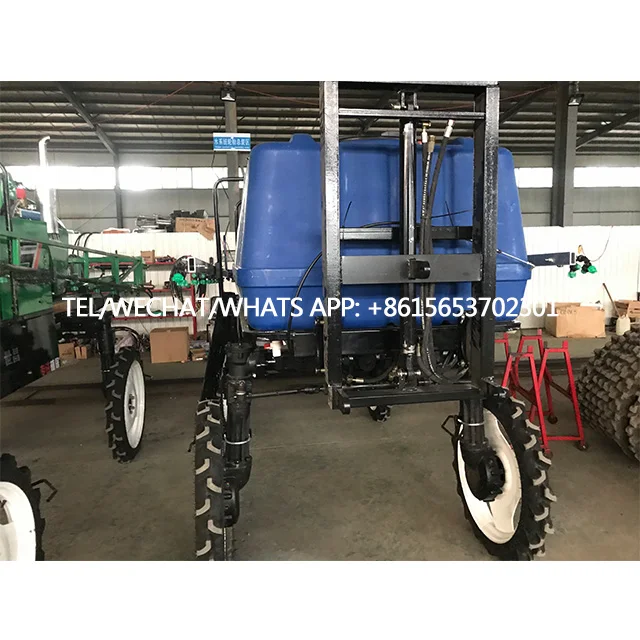

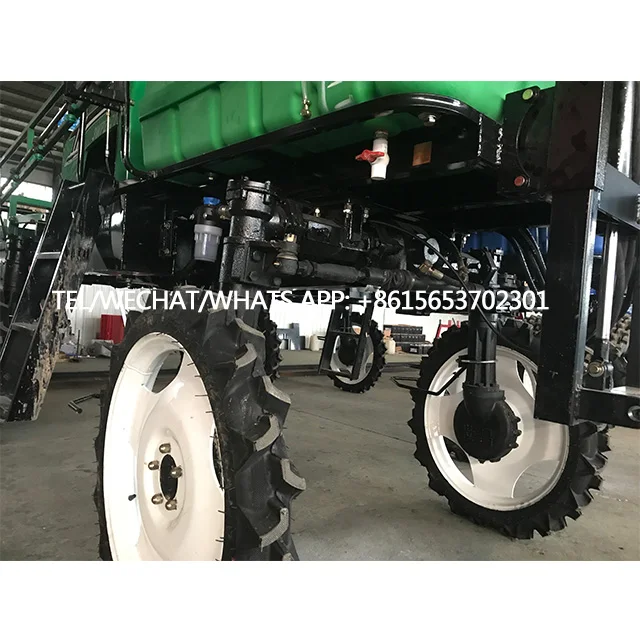

Pictures

Company Information

Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million.

This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC

lathe, boring machine, and milling machine.



Main products: channel cross-section bender, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.



We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.

Packaging & Shipping



The product will be packed in solid wooden box.
